VIVISUN® Lighted Pushbutton Switches

NEXSYS Component Options - Switch Body

NEXSYS® Component Technology is available in our VIVISUN® High Capacity or Compact switch bodies, as well as in NEXSYS® Modules. Inside a switch, NEXSYS components can occupy positions that are not already occupied by an electromechanical switch.

Each NEXSYS component is either a Series A, 4-pin device (shown in green), Series C (shown in orange) or Series N (shown in red), 8-pin device or Series R, 12-pin device (shown in purple).

NEXSYS® Components
8-pin ARINC 429 Signal ConverterARINC Single-Bit ConverterSingle label, Single-Bit ARINC 429 digitial-to-analog signal converterDetails
8-pin ARINC 429 Signal Converter
or
8-pin ARINC 429 Signal Converter
ARINC Multi-Bit ConverterSingle label, Multi-Bit ARINC 429 digital-to-analog signal converterDetails
8-pin ARINC 429 Signal Converter
or
8-pin ARINC 429 Signal Converter
ARINC Multi-Bit Binary DecoderSingle label, Multi-Bit ARINC 429 digital-to-analog binary decoderDetails
4-pin Diode PackCurrent SensorUndercurrent or overcurrent monitoringDetails
8-pin Defined LogicDefined LogicBoolean AND, OR, NOT (inverter) and Exclusive OR logic gates up to four inputsDetails
4-pin Diode PackDiode PackTwo independent diodes available in commercial or military configurationsDetails
8-pin Electronic LatchElectronic LatchElectronic flip-flop to replace magnetic or solenoid switchesDetails
8-pin Electronic RotaryElectronic RotaryPushbutton actuation to cycle through up to four latched statesDetails
8-pin Pulse/TimerPulse/TimerDual channel, edge detecting, one-shot pulse generator from 125 ms to 20 secondsDetails
4-pin Solid State RelaySolid State RelayNormally Open (up to 0.75 amps) or Normally Closed (up to 0.25 amps)Details
4-pin Terminal BlockSquare Wave OscillatorOutput a signal that oscillates between Open and Ground at a specified rateDetails
4-pin Terminal BlockTerminal BlockRated at 5 ampsDetails
4-pin Terminal BlockTime Delay
Output a delayed Ground or Open signal initiated after a specified input trigger eventDetails
4-pin Voltage SensorVoltage SensorMonitor DC under-volt or over-volt condition from 1 VDC to 48 VDCDetails

High Capacity Body

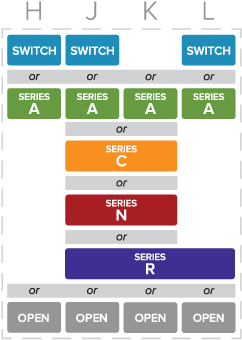

High Capacity bodies are a 16-pin device which provides four available, 4-pin positions (H, J, K and L in the diagram). Each Series A (4-pin) NEXSYS component can occupy one of the available four positions that is not already configured with an electromechanical switch pole (also a 4-pin device).

High Capacity bodies can accommodate one Series C or Series N (8-pin) NEXSYS component that will occupy the middle two positions (J and K), leaving positions H and L available for either two additional Series A NEXSYS components, two electromechanical switches or one of each as shown in the illustration below.

High Capacity bodies can accommodate one Series R NEXSYS component that will occupy three positions (J, K and L), leaving position H available for either one Series A NEXSYS component or one electromechanical switch.Unoccupied positions will be configured with an Open spacer.

High Capacity bodies with NEXSYS components require the use of Connector Plug (P/N 18-440). Please note, this connector plug is different than the plug required for switches that do not contain any NEXSYS components.

High Capacity Component Options
Up to four NEXSYS components
in a High Capacity Body

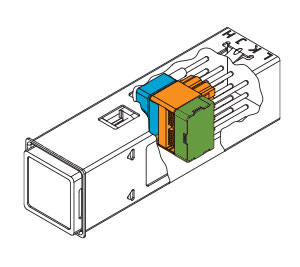

Example: Standard Square, High Capacity Body with;
one electromechanical switch, one Series C component
and one Series A component

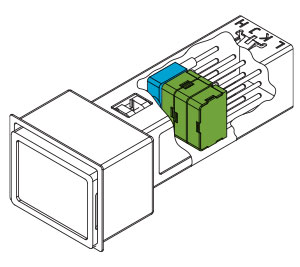

Example: Large Rectangular, High Capacity Body with;
one electromechanical switch
and three Series A components

Compact Body

Compact bodies are an 8-pin device which provides two available, 4-pin positions (A and B in the diagram). Each Series A (4-pin) NEXSYS component can occupy one of the available two positions that is not already configured with an electromechanical switch pole (also a 4-pin device).

Unoccupied positions will be configured with an Open spacer.

Compact bodies cannot accommodate Series C, Series N or Series R NEXSYS components. Applications that require the use of Series C, Series N or Series R NEXSYS components must be configured in a VIVISUN High Capacity body.

Compact bodies with NEXSYS components require the use of Connector Plug (P/N 18-442). Please note, this connector plug is different than the plug required for switch/annunciator bodies that do not contain any NEXSYS components.

Compact Component Options
Up to two NEXSYS components
in a Compact Body

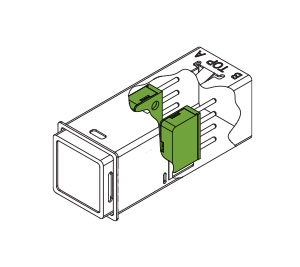

Example: Standard Square, Compact Body with;
two Series A components

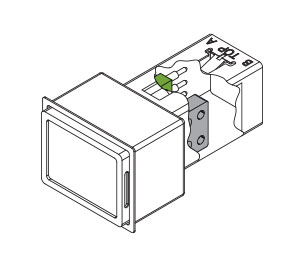

Example: Large Rectangular, Compact Body with;
one Series A component and one open spacer
