2.2
Panel Cutout

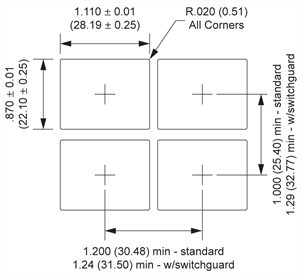

Panel cutouts for Standard Square and Large Rectangular bodies are shown below. The spacing between adjacent switches for standard installations (not using an optional switchguard) and installations utilizing a switchguard are also noted.
| Unsealed (Types I, III, and V) | Sealed (Types II, IV, VI) | |
| Standard Square |
|
|
| Large Rectangular
(Landscape Mount) |
|
|
| Dimensions in inches. Metric equivalent follows in ( ) for general information only. | ||
| See Section 3.4 for acceptable panel mounting thickness. If you are retro-fitting an existing panel with square cut-outs and the existing cut-out is too large, a Panel Adapter may be used to accommodate a VIVISUN® switch. |
|
